Digital View · LCD Controller Boards

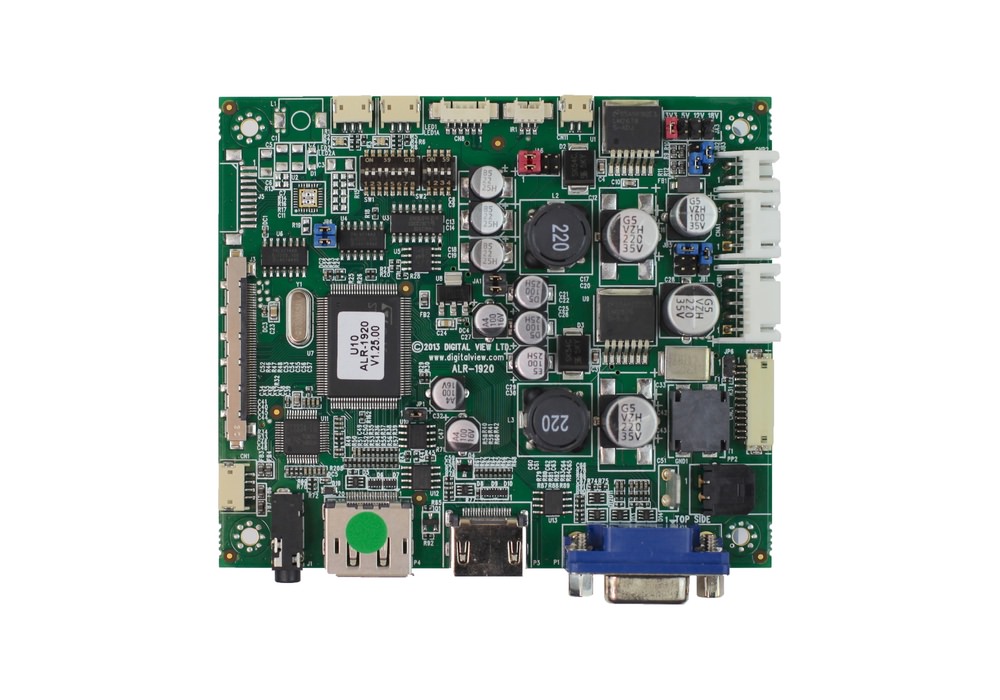

ALR-1920
Manufacturer part number: 4172700XX-3
Legacy model, available subject to MOQ. Compact Full HD and WUXGA controller with HDMI, VGA and DisplayPort inputs and LVDS output. ALT-1920 is its successor.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Industrial, Digital signage, Kiosks & retail, Harsh environments
- Product status
- Legacy model, available subject to MOQ
Video & display
- Input interfaces
- HDMI, DisplayPort, VGA
- Video inputs and versions
- HDMI 1.3, DisplayPort 1.1a, VGA
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS dual
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 8
- Image processing
- scaling, color-adjust
- Published latency
- 11 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI
- Audio output
- HDMI/DP audio: 2Wx2 amplified (CN1) + 3.5mm jack (J1) + SPDIF (CN11)
- Backlight control
- PWM or D/A (V1.10.00+); 100-440Hz PWM; VESA DPMS enable (JB2: 3.3V/5V/open-collector)
- Panel supply options
- 3.3V, 5V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 4 W
- Environment grade
- Standard
- Operating temperature
- 0 to 50 °C
- Board dimensions
- 107 × 92 mm (L x W)
- Board height
- 16.65 mm
Ask us for current product status and availability.
