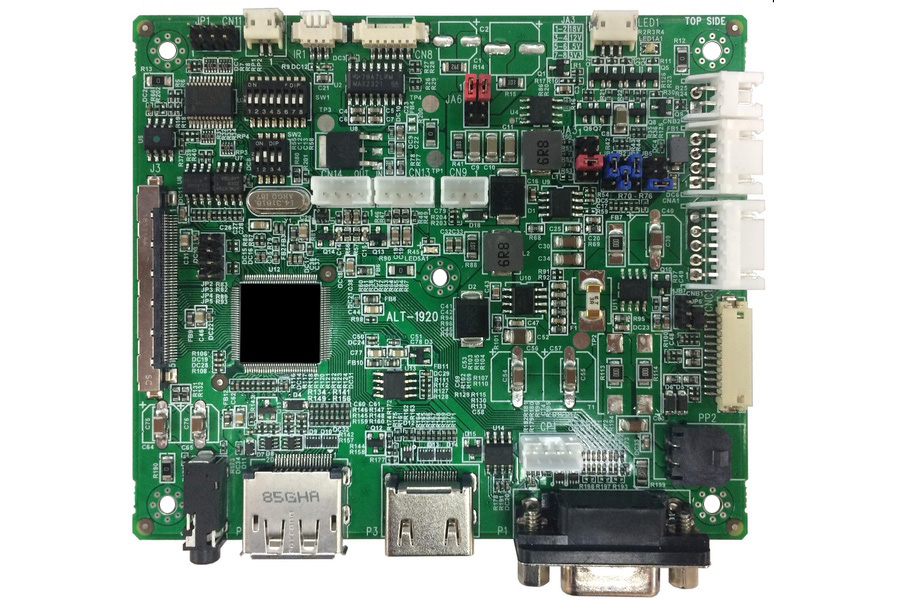

HLT-1920
Manufacturer part number: 4176401XX-3
Harsh-environment Full HD and WUXGA (1920x1200) LCD controller, conformal coated with tantalum capacitors, -40 to +80 C. HDMI 1.3, DisplayPort 1.2a, and VGA inputs; dual-LVDS output.
In stock.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Harsh environments, Medical, Industrial, Digital signage
Video & display
- Input interfaces
- HDMI, DisplayPort, VGA
- Video inputs and versions
- HDMI 1.3, DisplayPort 1.2a, VGA
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS dual
- Supported resolutions
- Up to 1920 × 1200
- Color depth (bits per color)
- 8
- Image processing
- scaling, color-adjust, auto-color-gain
- Published latency
- 13 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI
- Audio output
- Stereo line-in (VGA), line-out (HDMI/DP/CN13), SPDIF out
- Backlight control
- PWM or D/A dimming (0xe5); PWM freq 100-440Hz (0xe6); DPMS enable via CNB1 pin3
- Panel supply options
- 3.3V, 5V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 2.5 W
- Environment grade
- Harsh
- Operating temperature
- −40 to 80 °C
- Board dimensions
- 107.44 × 91.57 mm (L x W)
- Board height
- 17.45 mm
Documents
PDFBrochureDigital View PDF
↓ PDFManualDigital View PDF
↓ Request pricing and availability4176401XX-3
