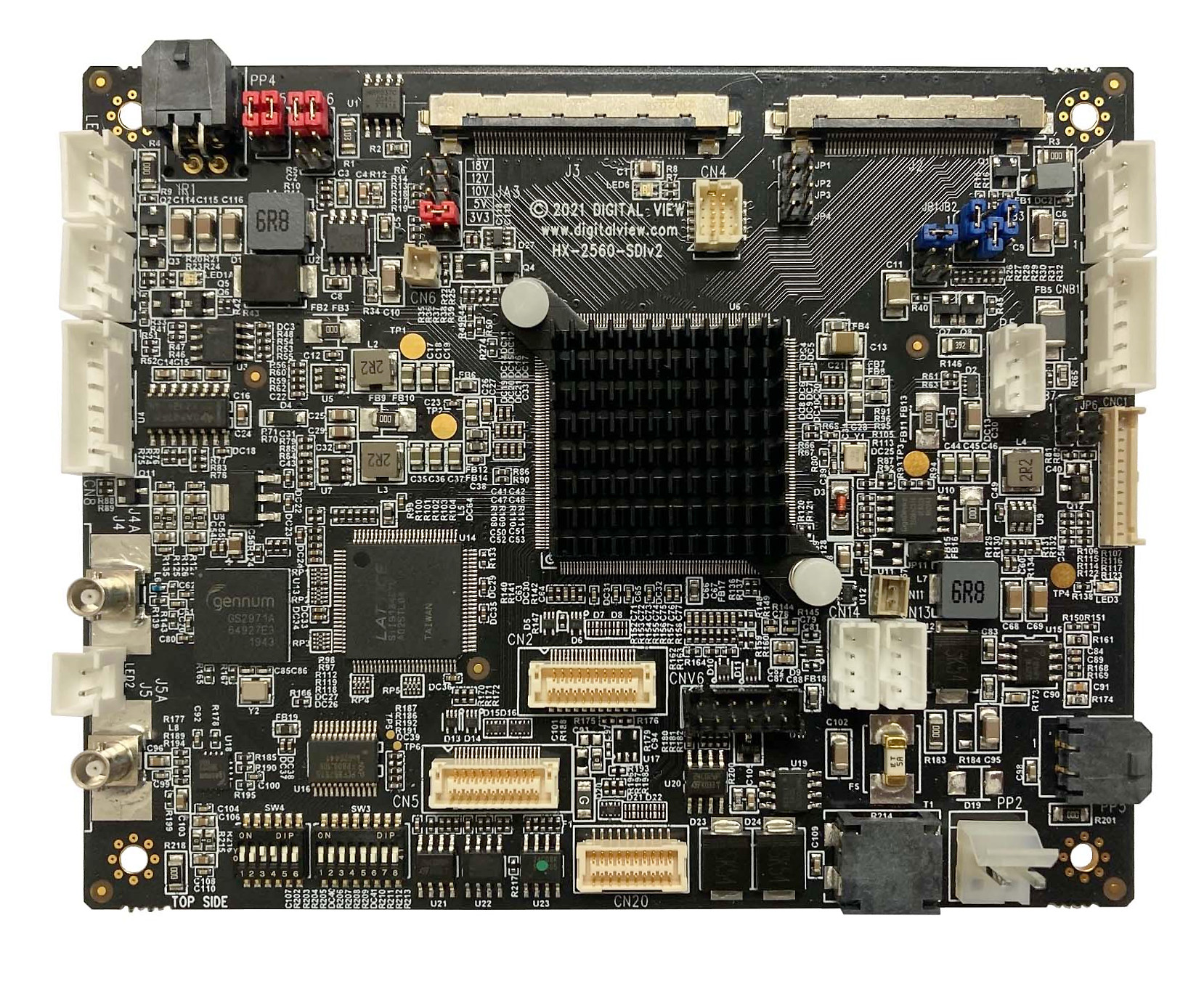

HX-2560-SDI
Manufacturer part number: 4178000XX-3
Harsh-environment 2560x1600 LCD and OLED controller with 3G, HD, and SD-SDI input on micro-BNC (with re-clocked loop-out), plus HDMI 1.4, DisplayPort 1.2, and VGA inputs; LVDS output.
In stock.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Harsh environments, Medical, Industrial, Digital signage, Broadcast AV
Video & display
- Input interfaces
- HDMI, DisplayPort, VGA, SDI
- Video inputs and versions
- HDMI 1.4, DisplayPort 1.2, VGA, 3G-SDI
- Maximum video input resolution
- 2560 × 1600
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS dual
- Supported resolutions
- Up to 2560 × 1600
- Color depth (bits per color)
- 10
- Image processing
- scaling, rotation, flip, PiP, PbP, color-adjust
- Published latency
- 32 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232
- Audio output
- SPDIF digital out (CN11) + analog stereo line-in (CN13)/line-out (CN14)
- Backlight control
- D/A (default) or PWM 100-440Hz, analog/digital dimming; invert; DPMS enable via CNB1 (3.3V/5V, JB2)
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 5 W
- Environment grade
- Harsh
- Operating temperature
- −40 to 80 °C
- Board dimensions
- 127 × 101.6 mm (L x W)
- Board height
- 19 mm
