Digital View · LCD Controller Boards

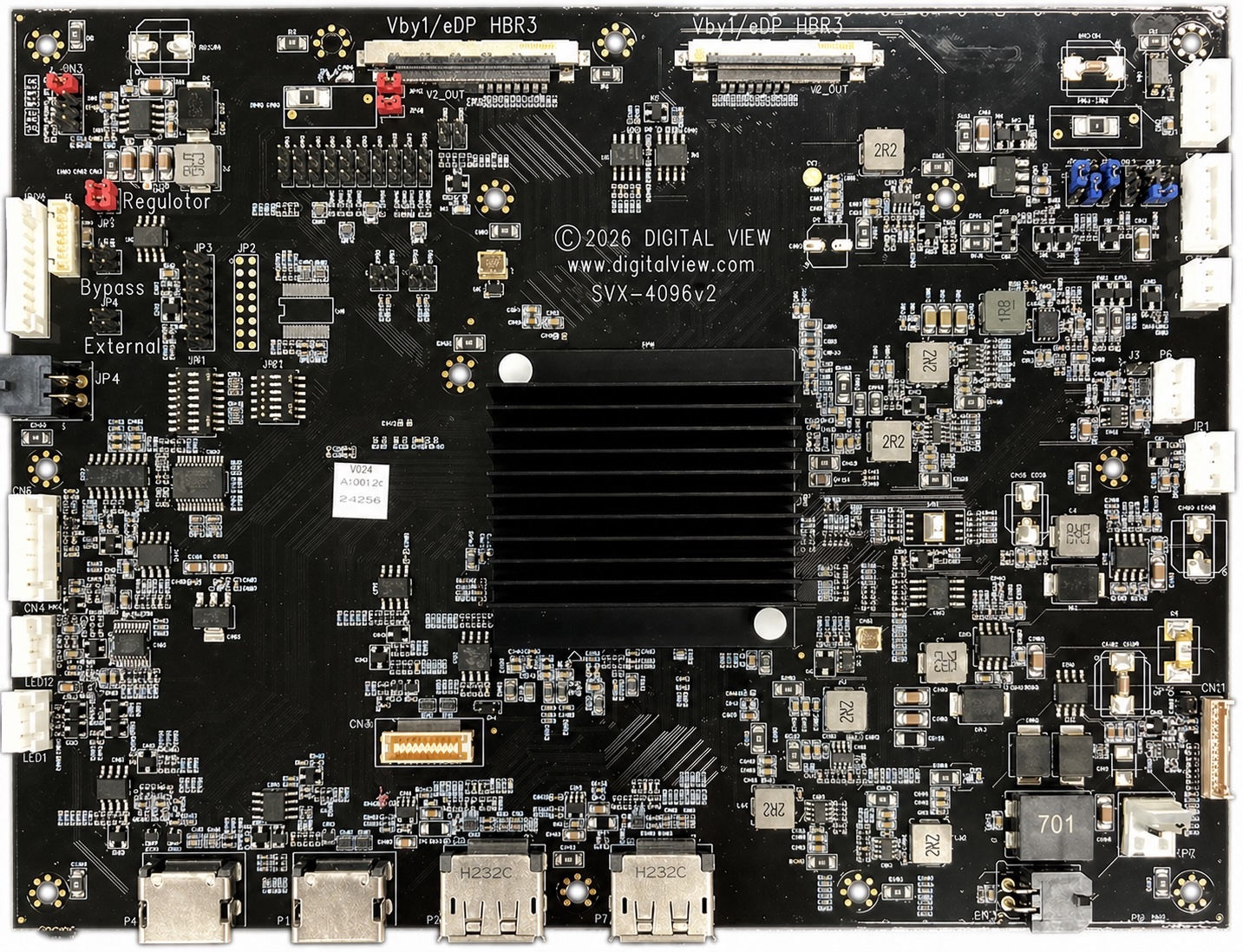

SVX-4096v2
Manufacturer part number: 4178600XX-3
Authorized Digital View distributor
True 4K LCD and OLED controller with dual HDMI 2.0 and dual DisplayPort 1.4 inputs, plus an internal HDMI 1.4 header. Up to 4K at 60 Hz video input; 60/120 Hz panel drive over V-by-One or eDP.
Specifications
Application & availability
- Target applications
- Digital signage, Corporate AV, Medical, Industrial, Harsh environments
Video & display
- Input interfaces
- HDMI, DisplayPort
- Video inputs and versions
- HDMI 2.0, HDMI 1.4, DisplayPort 1.4
- Maximum video input resolution
- 4096 × 2160
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- V-by-One, eDP
- Panel output details
- V-by-One, eDP
- Supported resolutions
- Up to 4096 × 2160
- Panel drive refresh rate
- 60 / 120 Hz
- Color depth (bits per color)
- 10
- Image processing
- scaling, rotation, PiP, PbP-quad, color-adjust
- Published latency
- 15 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI
- Audio output
- digital line-out from header, OSD volume
- Backlight control
- PWM 8-bit + DPMS enable (5V/3.3V)
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 10 W
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 203.2 × 154 mm (L x W)
- Board height
- 18.93 mm
Origin & compliance
- Country of origin
- Taiwan
- TAA compliance
- Compliant
Additional specifications
- Former model name
- SVX-4096-120v2
