Digital View · LCD Controller Boards

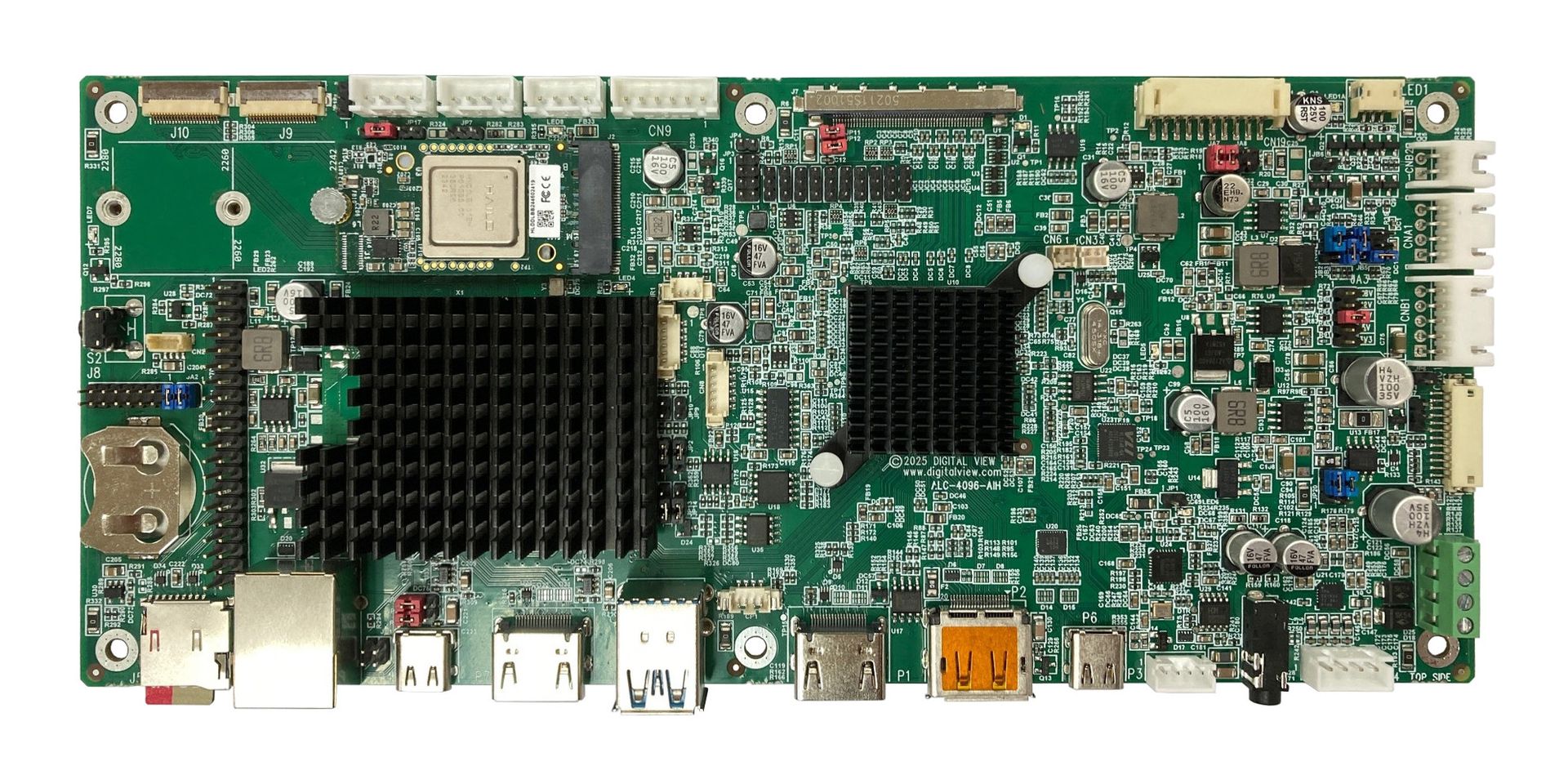

ALC-4096-AIH
Manufacturer part number: 4179000XX-3
AI-accelerated 4K LCD and OLED controller built on the ALC-4096, adding a Raspberry Pi CM5 and an M.2 PCIe AI accelerator (Hailo, DeepX, Brainchip, or Encharge) with dual CSI camera inputs.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Kiosks & retail, Industrial, Medical, Marine, Digital signage, Corporate AV, Transportation, Harsh environments
Video & display
- Input interfaces
- HDMI, DisplayPort, USB-C
- Maximum video input resolution
- 4096 × 2160
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- V-by-One, eDP
- Panel output details
- V-by-One, eDP
- Supported resolutions
- Up to 4096 × 2160
- Color depth (bits per color)
- 10
- Image processing
- scaling, rotation
- Published latency
- 12 ms
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI, USB, Ethernet, GPIO
- Touch support
- Yes
- Audio output
- line-out, stereo, no amplification; supports Digital View audio add-on board
- Backlight control
- DPMS enable (3.3V/5V) + analog or PWM brightness via serial-port controller
- Panel supply options
- 3.3V, 5V, 10V, 12V, 18V
- Supply voltage
- 12 or 24 V DC
- Power consumption (board only)
- 4 W, controller only (AI module up to 13 W)
- Environment grade
- Standard
- Board dimensions
- 233.68 × 101.6 mm (L x W)
- Board height
- 16 mm
Additional specifications
- Previous part number
- 4179000XX-5
Ask us for current product status and availability.
