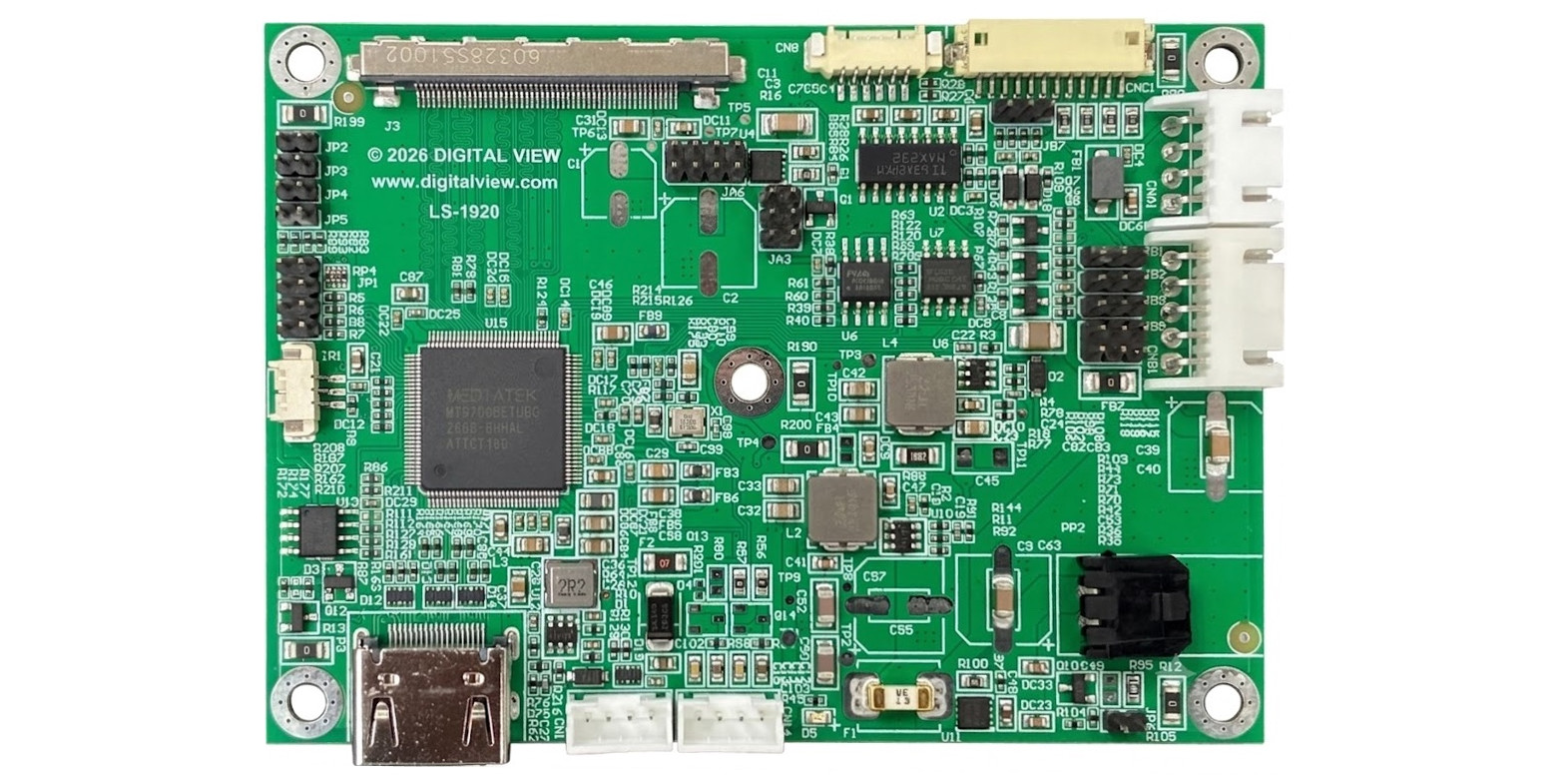

LS-1920-HDMI
Manufacturer part number: 4179500XX-3
HDMI-to-LVDS controller for volume OEM displays, supporting single or dual-channel panels up to 1920x1200. Select from 16 panel profiles with onboard jumpers. Minimum order quantities apply.
Specifications
Application & availability
- Target applications
- Commercial displays, Industrial, Volume OEM, Kiosks & retail, Digital signage, test and measurement
- Product status
- Released; minimum order quantities apply
Video & display
- Input interfaces
- HDMI
- Video inputs and versions
- HDMI 2.0 x1, Type A
- Maximum video input resolution
- 1920 × 1200
- Maximum video input refresh rate
- 86 Hz
- Video input timing
- 23 to 86 Hz; 60 Hz recommended. Panel must accept the source timing.
- HDCP support
- Not supported
- Panel interface
- LVDS
- Panel output details
- LVDS, single or dual channel; VESA or JEIDA mapping
- Supported resolutions
- Up to 1920 × 1200
- Panel drive refresh rate
- Matches the input rate; no frame-rate conversion
- Color depth (bits per color)
- 6 or 8
- Image processing
- color-adjust
- Published latency
- 8.4-10.9 ms mid-screen at 1920x1080p60 (Leo Bodnar tester)
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232, DDC/CI over HDMI
- Panel profile selection
- JP1 jumper: 16 settings, 12 built-in profiles and 4 custom timings uploaded over RS-232
- Firmware update
- USB memory stick via 4-pin header
- Audio output
- Stereo line-out from HDMI (4-pin header); external amplifier for speakers
- Backlight control
- PWM or analog brightness; enable pin 3.3V or 5V
- Panel supply options
- 3.3V, 5V, 12V
- Supply voltage
- 12 V DC
- Power consumption (board only)
- 1.5 W
- Environment grade
- Standard
- Operating temperature
- 0 to 70 °C
- Board dimensions
- 97 × 70 mm (L x W)
- Board height
- 11 mm
Origin & compliance
- Country of origin
- Taiwan
- TAA compliance
- Compliant
Ask us for current product status and availability.
Documents
PDFConfigure it for your display.
Use the onboard jumper to select from 12 built-in panel profiles and four custom timing settings. Send us your panel model, quantity and target date; we can help confirm the controller, cables, backlight driver and power requirements.
