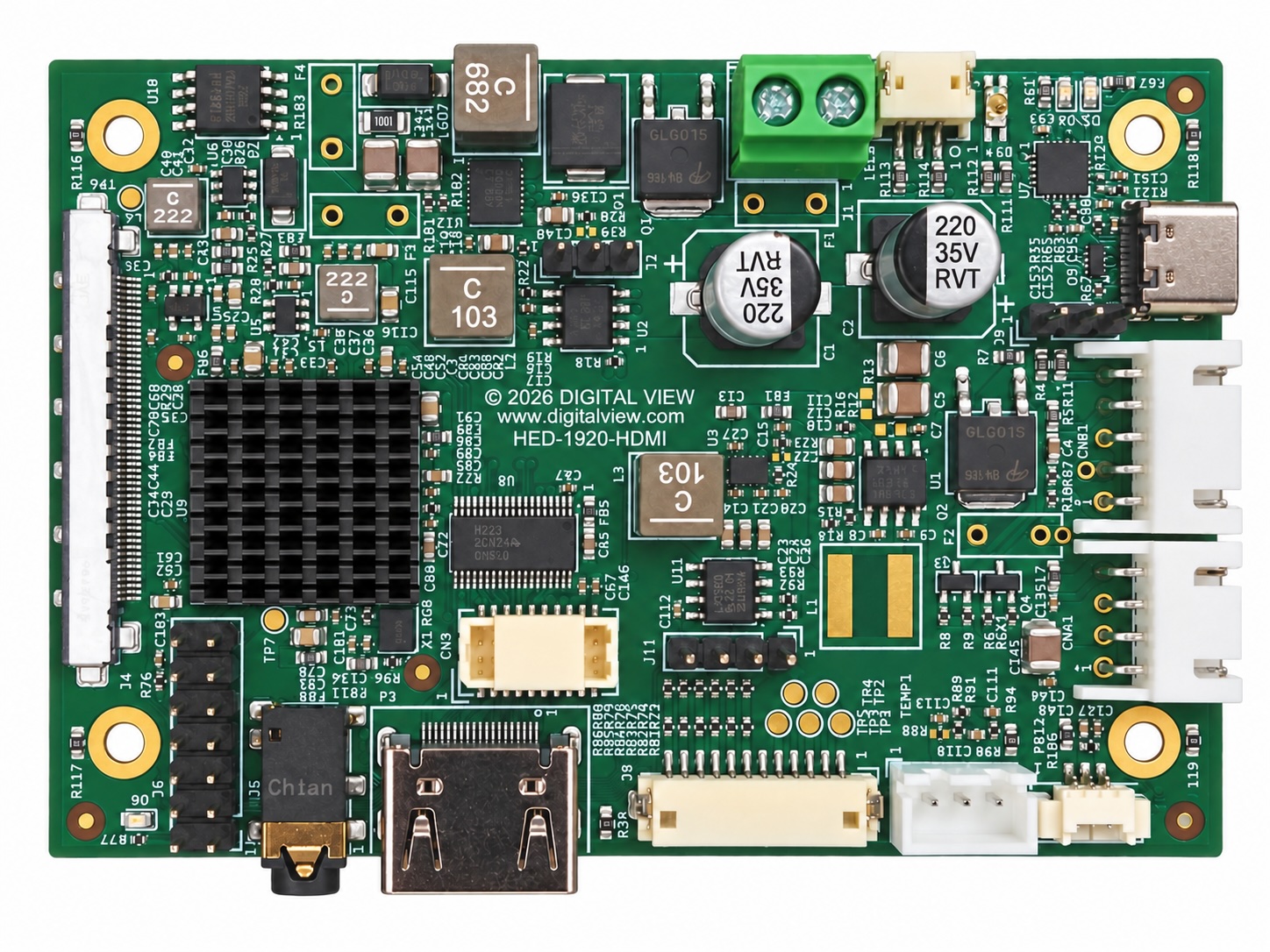

HED-1920-HDMI
Upcoming HDMI-to-LVDS controller for panels up to 1920x1080, rated -40 to +85 °C with conformal coating. Samples planned for Q4 2026. Stated 15-year availability program from release; preliminary specifications.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Harsh environments, Industrial, Medical, Infrastructure
- Product status
- Upcoming; preliminary specifications
Video & display
- Input interfaces
- HDMI
- Video inputs and versions
- HDMI 1.3
- Maximum video input resolution
- 1920 × 1080
- Maximum video input refresh rate
- 60 Hz
- Panel interface
- LVDS
- Panel output details
- LVDS dual
- Supported resolutions
- Up to 1920 × 1080
- Color depth (bits per color)
- 8
- Image processing
- scaling, color-adjust
- Published latency
- <0.1 ms (108 ns native; 72 µs scaling)
Integration & physical details
- Control interfaces
- OSD buttons, IR remote, RS-232 (over the USB-C service port)
- Audio output
- line-out, stereo, from HDMI (3.5 mm jack)
- Backlight control
- PWM; enable pin 5V or 3.3V
- Panel supply options
- 3.3V or 5V, 12V
- Supply voltage
- 12 or 24 V DC
- Environment grade
- Harsh
- Operating temperature
- −40 to 85 °C
- Board dimensions
- 91.44 × 62.69 mm (L x W)
Ask us for current product status and availability.
