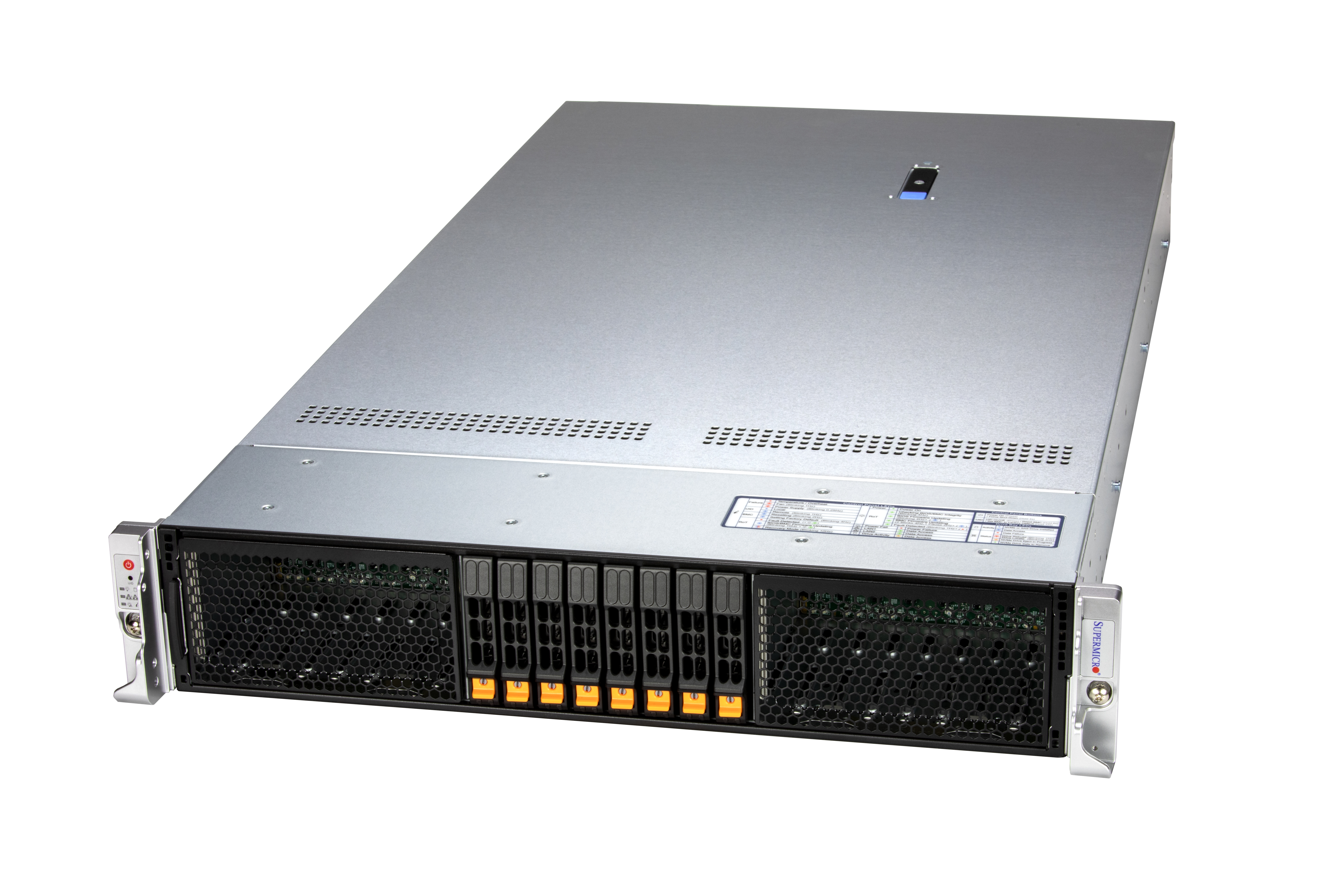

The SYS-212H-TN-01-G2 is designed for data center teams and infrastructure architects who need higher-density storage and expansion headroom in a 2U form factor, while keeping a streamlined single-socket footprint. Built on a single Intel’ Xeon’ 6 processor platform with a DDR5 memory architecture, this system supports virtualization clusters, software-defined storage, database-heavy environments, and scale-out enterprise deployments.

In 2U, the platform scales well beyond typical 1U nodes, offering front hot-swap 2.5" bay configurations that extend up to 24 drives, plus extensive PCIe 5.0 expansion and AIOM networking flexibility (OCP NIC 3.0 compatible). This design supports high-throughput networking, storage controllers, and accelerator options when your deployment requires more I/O and more local storage per server.

If you are evaluating the SYS-212H-TN-01-G2 alongside the SYS-112H-TN-01-G2 , the difference comes down to density and expandability. SYS-112H-TN-01-G2 is optimized for 1U scale-out deployments, while SYS-212H-TN-01-G2 delivers added storage bay capacity, higher PCIe slot availability, and broader GPU support in 2U for consolidation-focused builds.

SYS-212H-TN-01-G2 Performance Highlights

• - 2U High-Density Hyper Platform: Single-socket Intel’ Xeon’ 6 architecture delivers strong performance in a 2U chassis built for higher storage and expansion density.
• - Up to 24 Hot-Swap 2.5" Bays: Front hot-swap storage configurations scale from smaller bay counts up to 24 bays, supporting NVMe, SAS, or SATA drive options for high-density storage tiers.
• - Expanded PCIe 5.0 and AIOM Networking Flexibility: Extensive PCIe 5.0 expansion plus up to two OCP NIC 3.0-compatible AIOM slots support high-throughput networking, HBAs, accelerators, and specialized adapters.
• - Multi-GPU Ready in 2U: Supports GPU configurations up to four double-width or up to eight single-width GPUs for inference, acceleration, and mixed workload consolidation.
• - Gold Series Pre-Configured Baseline: SYS-212H-TN-01-G2 ships as a standardized build for faster procurement and repeatable deployment across enterprise and cloud infrastructure environments.
• - Redundant Titanium Power for High-Density Builds: Dual redundant Titanium-level power supplies support performance-driven configurations and steady uptime in production racks.
