WF43WTYBEDAT0

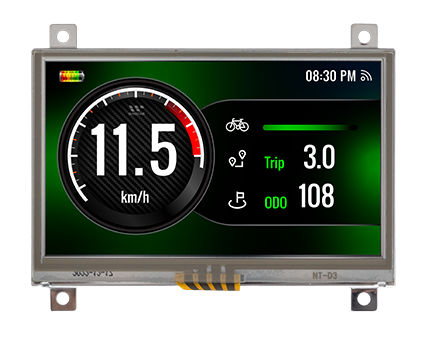

4.3" IPS 480x272 RTP w/controller board
Manufacturer: Winstar Display
The WF43WTYBEDAT0 is a 4.3-inch TFT LCD module with IPS RTP technology and a controller board and has a resolution of 480x272 pixels.
This TFT LCD module allows for wide viewing angles and has module dimensions of 106.7 by 83.98 mm, a supply voltage of 3.0V to 3.6V, and wide operating and storage temperatures.
With wide operating and storage temperature ranges, high resolution, and a long product lifecycle, the WF43WTYBEDAT0 is guaranteed to enhance the quality of your industrial application.
| Availability | |
|---|---|
| Available stock | 0 |
| ?More in reserve stockWe may have stock in reserve for a project. Ask us, And we'll see if we can make it available for you. | No |
| ?Standard lead timeLead times are subject to change. Contact us for a current estimated lead time for backorders. | Contact Us |
| Contact Us for a Quote |
| Size (Inches) | 4.3 |
|---|---|
| Resolution (Pixels) | 480 x 272 |
| Brightness (NITS) | 350 |
| Operating Temp (C) | -20 to +70 |
